Welding fume extraction system cost is a major consideration for weld shops in 2025, and understanding the price breakdown is key to making the right investment. Clean air isn’t optional in a modern welding environment , it’s essential. Welding fumes contain hazardous particles and gases that can impact not only your team’s health but also your facility’s productivity and compliance. In this guide, we explore 2025 welding fume extraction system costs across all major categories , from portable units to downdraft tables and full-shop stationary systems , so you can budget smarter and breathe easier.
What are the Welding Fume Extraction System Costs in 2025?
Welding fume extraction systems come in a variety of configurations, and the cost depends largely on the type of system you need. Whether you’re a small shop needing a mobile unit or a larger facility outfitting multiple stations, understanding the pricing landscape is the first step toward making the right investment.
Below is a breakdown of 2025 pricing for the four primary types of welding fume extraction systems, along with what each is best suited for:
| System Type | Typical Cost (USD) | Best For |
| Portable Units | $1,700 – $7,500 | Small workshops, mobile use, and single welding stations |
| Stationary Systems | $2,750 – $9,000 per station | Multi-station operations, high-volume welding environments |
| Wall-Mounted Extractors | $3,500 – $9,000 | Space-limited workstations or training booths |
| Downdraft Tables | $5,734 – $22,000 | Grinding, plasma cutting, or bench welding tasks |
Portable Units ($1,700 – $7,500)
Portable fume extractors are the most flexible and cost-effective option for shops with just one or two welders. These units can be wheeled between stations, and while basic models start around $1,700, higher-end units with stronger fans, better filters, and self-cleaning systems can reach up to $7,500.
Ideal for shops that need mobility or frequently change their welding locations, portable extractors provide a practical entry point into safer air quality without major infrastructure changes.
Stationary Systems ($2,750 – $9,000 per Welder)
Designed for higher-volume operations, stationary systems feature a central filtration unit connected to one or more welding stations. Costs scale depending on how many stations are served , for example, a 10-station system could range from $30,000 to $90,000. These units offer high airflow, self-cleaning filters, and efficiency for production-level welding environments.
Precision Welding Group specializes in designing these systems around your facility’s layout, helping you balance performance and cost.
Wall-Mounted Extractors ($3,500 – $9,000)
Wall-mounted systems provide the performance of a stationary unit without taking up valuable floor space. These units are ideal for dedicated welding booths and often include flexible extraction arms and cartridge filters. Their compact, mounted design makes them a popular choice in tight shops or schools with fixed stations.
Downdraft Tables ($5,734 – $22,000)
These heavy-duty tables combine work surfaces with powerful downward airflow to capture fumes and dust at the source. Smaller tables with basic filtration can cost around $5,700, while larger self-contained units with automatic filter cleaning may run $20,000 or more. They’re especially effective for bench welding, grinding, and finishing tasks.
Stationary Welding Fume Extraction Systems Costs and Capabilities
Stationary fume extraction systems are the workhorses of larger fabrication environments. Designed for continuous-duty performance, these systems are ideal when multiple welding stations need consistent, high-volume fume control. Unlike portable units, stationary systems are fixed installations that use ducting and centralized filtration to remove fumes from several points across the facility. Precision Welding Group provides robust stationary options tailored for high-throughput shops, with modular capabilities to scale with demand.
How Much Do Stationary Fume Extraction Systems Cost in 2025?
Pricing for stationary fume extraction systems in 2025 depends on system size, number of workstations, and the complexity of the installation. General cost ranges are as follows:
| System Configuration | Typical Cost (USD) | Notes |
| Single-station fixed unit | $3,000 – $5,000 | Similar to a wall-mount or small floor-standing unit |
| Multi-station central system | $2,750 – $9,000 per station | Central fan and filter with ducting to each welding booth |
| Full shop-wide system (8+ arms) | $30,000 – $70,000+ | Scales with booth count and air handling capacity |
| High-capacity custom solutions | $70,000 – $115,000+ | Covers large welding cells or robotic lines with overhead hoods |
These figures reflect Precision Welding Group’s offerings as well as industry-standard benchmarks. While entry-level configurations may serve smaller operations well, large-scale setups require a detailed layout analysis to ensure optimal airflow and compliance with OSHA exposure limits.
Key Features and Advantages
- Centralized Filtration: Designed to collect fumes from multiple stations simultaneously via ductwork and hoods or arms.
- High Airflow Capacity: Many systems deliver airflow well over 3,000 CFM, suitable for heavy fume applications.
- Automatic Filter Cleaning: Pulse-jet or reverse-air filter cleaning reduces maintenance and keeps suction strong.
- Modular Expansion: Some units allow future scaling, adding arms, ductwork, or filter modules as operations grow.
- Durability: Built with industrial-grade materials, these systems are designed for 24/7 reliability.
When Stationary Systems Make Sense
Precision Welding Group typically recommends stationary systems for fabrication facilities with:
- More than 4–5 welding stations
- Continuous welding shifts
- Fixed-location booths or production lines
- Requirements for high-efficiency filtration (e.g., stainless or galvanized steel work)
Stationary systems represent a larger investment but offer unmatched efficiency, safety, and air quality control across multiple work areas. Precision Welding Group’s team works closely with clients to assess layout, power availability, and future capacity needs to design and implement the most cost-effective configuration.

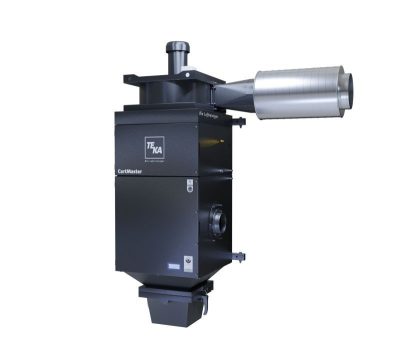

Wall-Mounted Welding Fume Extractors: A Space-Saving Solution with Industrial Power
Wall-mounted fume extractors strike a balance between portability and permanence. These units are affixed to a wall or structural post and are typically used to serve a single welding station, making them ideal for compact workshops or dedicated welding booths. They’re popular in both training environments and small to medium-sized operations where space is at a premium but clean air is non-negotiable.
How Much Does a Wall-Mounted Welding Fume Extractor Cost in 2025?
As of 2025, most wall-mounted units fall within the $3,500 to $9,000 range, depending on their airflow capacity, filtration system, arm reach, and added features like self-cleaning filters or noise dampening. Units closer to the $3,500 mark tend to include a basic fan/filter combination with a standard extraction arm, while higher-end models include auto-cleaning filters and advanced control options.
These systems provide an excellent return for the price: while they may lack the mobility of portable units, they offer improved suction consistency and eliminate the need to move equipment between stations.
| Feature | Entry-Level (~$3,500) | Premium (~$7,000–$9,000) |
| Filtration Type | Disposable cartridge | Self-cleaning, multi-stage |
| Arm Reach | 6–7 ft standard | 10+ ft, articulated or telescopic |
| Fan Capacity | ~500–750 CFM | 1000+ CFM, optimized for heavy-duty use |
| Noise Reduction | Basic | Integrated silencers or acoustic housing |
| Certifications | Standard filtration | W3-compliant, OSHA/NFPA friendly |
Where Wall-Mounted Units Make Sense
Wall-mounted extractors are best suited for fixed welding locations, such as dedicated workstations or booths arranged along a wall. Since each unit is localized, this setup provides direct source capture while preserving valuable floor space. Installation is straightforward for shops already equipped with solid mounting infrastructure and basic electrical service.
Common applications include:
- Welding training centers needing clean air per booth
- Fabrication shops optimizing workstation layout
- Facilities with low to moderate throughput at each station
What Precision Welding Group Offers
Precision Welding Group offers a selection of wall-mounted units that balance reliability with compact design. For example, their CartMaster Wall-Mount Extractor features a high-capacity steel fan and self-cleaning cartridge filtration, perfect for stainless steel fume applications. With options like hood-mounted lighting or local on-off switches, these units deliver both performance and ease of use.
If you’re outfitting multiple booths or planning long-term capacity expansion, Precision Welding Group’s engineering team will help you choose the right model and accessories for your setup, ensuring proper coverage, regulatory compliance, and long-term efficiency.

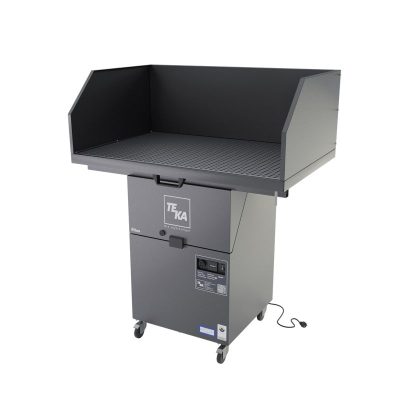

How Much Do Downdraft Welding Tables Cost in 2025?
Downdraft tables offer a dual-purpose solution: they serve as both a sturdy workbench and an effective fume and dust extraction system. With a perforated tabletop that pulls air and particulates downward through integrated suction, these tables are ideal for welding, grinding, or plasma cutting tasks, especially when working with smaller parts or doing precision work at close range.
2025 Price Range for Downdraft Tables
In 2025, pricing for downdraft tables varies based on table size, filtration system, airflow capacity, and whether the unit is ducted or self-contained. Here’s a look at what to expect:
| Downdraft Table Type | Typical Cost (USD) | Notes |
| Basic ducted table (external fan) | $5,000 – $7,000 | Requires connection to a central extractor or external blower |
| Self-contained mid-size table | $7,000 – $12,000 | Includes built-in fan, cartridge filters, ~1200–1800 CFM airflow |
| Large heavy-duty table | $12,000 – $22,000+ | Designed for grinding/heavy welding, multi-stage filtration, larger surface area |
Tables toward the lower end are generally simple extraction benches requiring external ductwork. Higher-end models integrate internal filtration and often include auto-cleaning systems and spark containment features, making them a plug-and-play solution for high-performance needs.
When to Choose a Downdraft Table
Downdraft tables shine in bench work environments where localized capture of fumes and dust is critical. They’re often the best choice when:
- Operators are working with small-to-medium weldments at a stationary bench
- The shop needs both fume and grinding dust removal
- Safety and OSHA compliance are high priorities (due to low-level fume exposure)
- Training centers or schools need a clean, modular setup for students
These tables are particularly valuable where workers need clear visibility and freedom of movement without an extraction arm overhead.
What Precision Welding Group Offers
Precision Welding Group’s downdraft offerings combine rugged steel construction with smart airflow design. For example, their TEKA-branded downdraft benches include baffle plates beneath the surface to evenly distribute suction, improving fume capture while minimizing turbulence. Optional add-ons include refractory inserts for plasma cutting, overhead extraction arms, and integrated lighting.
Precision Welding Group also offers models with automatic filter cleaning systems, enabling extended run times with minimal maintenance. For facilities handling high-throughput work or hazardous metals, these features ensure that both operators and air quality stay protected over long shifts.
Whether your goal is upgrading individual weld booths or adding multi-use extraction stations across the floor, Precision Welding Group can tailor a downdraft table solution that fits your workflow, space, and safety requirements.
What Factors Affect the Cost of a Welding Fume Extraction System?
The cost of a welding fume extraction system isn’t just about the unit you choose, it’s shaped by a wide range of variables that influence both upfront investment and long-term performance. Understanding these cost drivers helps ensure you select a system that fits both your budget and your workspace’s actual needs.
Number of Welders and Extraction Points
Perhaps the most significant cost factor is the number of welders or stations you need to cover. A system designed for a single welder might only require a portable unit or wall-mounted extractor. But once you’re outfitting a multi-booth operation or production line, costs scale quickly.
- Single station: A portable or wall-mounted unit may suffice, ranging from $3,000 to $7,500.
- Multi-station setup: Centralized systems with ducted arms or hoods typically cost $3,000–$9,000 per station, depending on airflow demands and filter technology.
- Cost-saving strategy: Precision Welding Group often helps customers reduce per-station cost by implementing scalable centralized systems, especially when future expansion is anticipated.
Workspace Size and Layout
Your facility’s physical layout can significantly impact the total installation cost. Larger spaces, or those with dispersed welding booths, require:
- Longer duct runs and stronger fans to maintain effective suction
- Multiple extraction arms or hoods to cover distance
- Customized configurations that may require mounting brackets, floor stands, or ceiling suspensions
If your workspace has high ceilings, limited access to external exhaust points, or requires retrofitting around existing infrastructure, these factors can increase both material and labor costs.
Extraction Technology and Performance Features
The type of filtration system and included features is another core pricing component. While basic models might use replaceable filters and manual cleaning, advanced systems come with:
- Automatic filter cleaning (pulse-jet systems)
- Sensor-based activation (e.g., current sensors, motion triggers)
- Variable-speed fan controls
- Remote monitoring or filter diagnostics
For example, Precision Welding Group’s downdraft tables and central systems can be outfitted with Power-Spray self-cleaning cartridges and AirTracker integration, ensuring consistent performance with less manual oversight.
These features add cost, but they also reduce maintenance, extend filter life, and support regulatory compliance.
Accessories, Add-ons, and Customization
Optional accessories and configuration needs can add hundreds, or thousands, of dollars to your project. Common extras include:
- Extraction arms (standard or telescoping): $1,800–$2,800
- Specialized nozzles or hoods for robotic stations or tight spaces
- HEPA or W3-compliant filters for high-risk applications (e.g. stainless steel welding)
- Ductwork materials (e.g. anti-static or corrosion-resistant linings)
Precision Welding Group works with each client to match accessories to real-world usage, ensuring you don’t overpay for features you don’t need, or miss crucial capabilities that protect your team.
Brand, Durability, and Compliance
Not all fume extractors are built the same. Higher-end systems typically include:
- Thicker steel housings
- Higher horsepower fans
- Noise-reduction and spark-suppression features
- Certification badges (like IFA W3 or OSHA compliance)
Choosing a trusted brand like those carried by Precision Welding Group means investing in a system that’s built to last, easy to service, and backed by proper documentation and technical support.
Final Thoughts: Investing in the Right Fume Extraction System in 2025
Whether you’re running a compact fabrication bay or a high-throughput production facility, a reliable fume extraction system is more than just a compliance checkbox, it’s a long-term investment in employee health, air quality, and shop efficiency. From portable extractors starting around $1,700 to full-scale central systems in the tens of thousands, the right solution comes down to your shop’s size, process, and growth plans.
Precision Welding Group understands that every welding environment is different. That’s why we offer a full range of fume extraction systems, from cost-effective wall-mounted units and downdraft tables to advanced self-cleaning stationary setups, paired with expert guidance to help you balance cost, performance, and long-term ROI.
Still not sure what system fits your shop best?
Let our team walk you through your options. We’ll evaluate your current processes, space constraints, and compliance needs, then recommend a solution that fits both your workflow and your budget.
Contact Precision Welding Group today to get a personalized quote or schedule a consultation. Clean air isn’t a luxury, it’s a necessity. Let’s make sure your shop is ready for 2025 and beyond.
