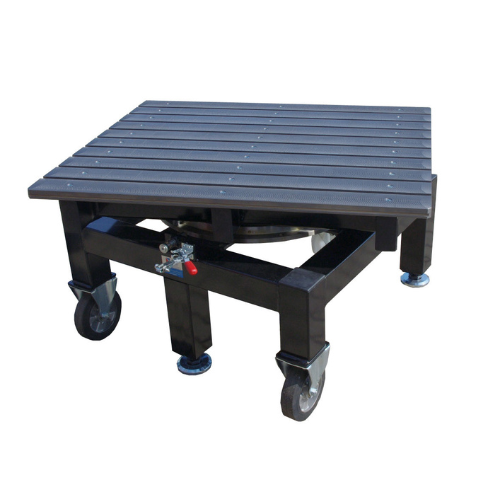

Rotating Welding Table
The Forster America Rotating Welding Table features a 360° rotation function with a manual locking brake, enabling effortless workpiece positioning, increased efficiency, and precise, tool-free adjustments for heavy-duty welding applications.
The Forster America Rotating Welding Table is designed to maximize efficiency, comfort, and precision by allowing seamless 360° rotation, ensuring that your workpiece moves, not your working position. This innovative feature enhances workflow, reduces strain, and improves welding accuracy.
Key Features & Benefits
360° Rotation for Maximum Accessibility: With a smooth rotation function and easy handling, welders can comfortably adjust the workpiece to the optimal position for welding, reducing the need for awkward repositioning or manual lifting.

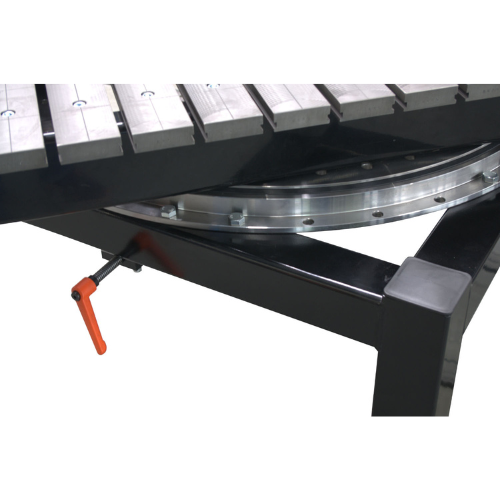

Manual Locking Mechanism for Stability: Equipped with a manual locking brake, the table can be securely fixed in place, ensuring stability and precision during welding operations. This feature enhances safety and control, making it ideal for demanding applications.
Tool-Free Adjustments for Seamless Setup: The surface height and positioning can be adjusted without the need for tools, streamlining setup time and allowing for quick modifications based on the specific requirements of each welding task.
Heavy-Duty Load Capacity
- Point loads up to 1.5 tons, accommodating heavy-duty workpieces.
- Surface loads up to 3.0 tons, providing a robust and durable workspace for industrial welding applications.
- Surface flatness of +/- 0.05 mm, ensuring precision and consistency in every weld.
Durable Construction for Long-Lasting Performance: Crafted from special gray cast iron or a non-ferrous alloy, the table top is built to withstand high loads, resist weld spatter, and maintain exceptional surface durability. This high-quality construction ensures longevity and reliability in any professional welding environment.
Increase Productivity and Reduce Fatigue: By eliminating the need for constant repositioning, the Rotating Welding Table significantly enhances efficiency, reduces welder fatigue, and improves overall productivity. With precise control over workpiece positioning, you can focus on welding with greater accuracy and consistency.
For enhanced comfort, efficiency, and precision, the Forster America Rotating Welding Table is the ideal solution for professional welders.
Technical Data
| Product ID | Dimensions | Table Material | Max Working Load | Adjustable Height | Rotates |
|---|---|---|---|---|---|
65611012 | 1000 mm x 1200 mm | Gray Cast | 2000 kg | 835 mm – 945 mm | 360° |
65621012 | 1000 mm x 1200 mm | Al/Cu Alloy | 2000 kg | 835 mm – 945 mm | 360° |
65611812 | 1800 mm x 1200 mm | Gray Cast | 2000 kg | 835 mm – 945 mm | 360° |
65621812 | 1800 mm x 1200 mm | Al/Cu Alloy | 2000 kg | 835 mm – 945 mm | 360° |
65612412 | 2400 mm x 1200 mm | Gray Cast | 2000 kg | 835 mm – 945 mm | 360° |
65622412 | 2400 mm x 1200 mm | Al/Cu Alloy | 2000 kg | 835 mm – 945 mm | 360° |
65613015 | 3000 mm x 1500 mm | Gray Cast | 2000 kg | 835 mm – 945 mm | 360° |
65623015 | 3000 mm x 1500 mm | Al/Cu Alloy | 2000 kg | 835 mm – 945 mm | 360° |
