Pivoting Table

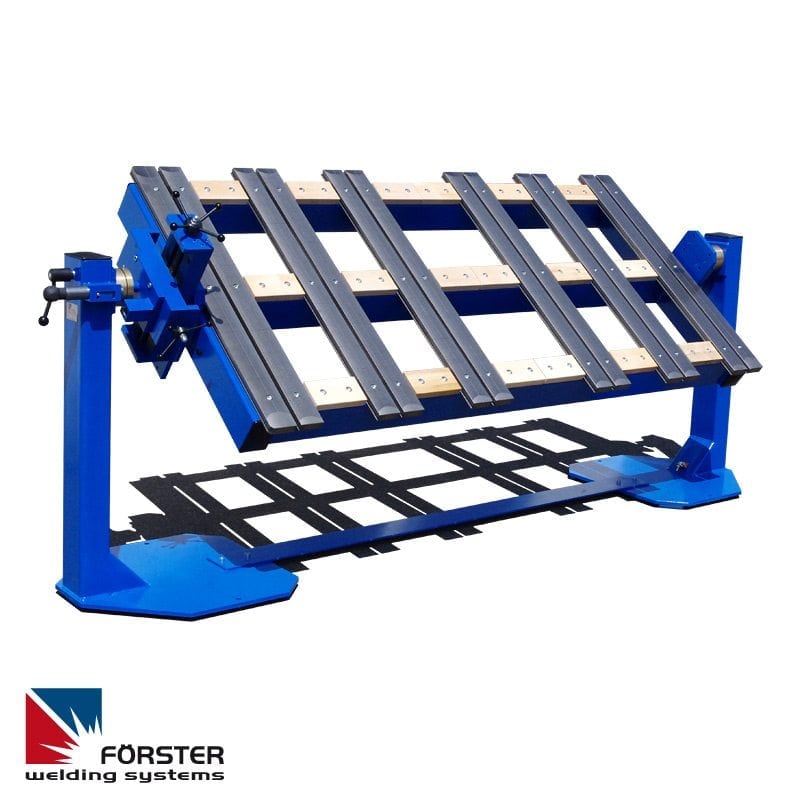

The Forster America Pivoting Welding Table features a 360° electromotive rotary drive, hydraulic height adjustment, and reversible rails for effortless access and precise positioning of heavy welding components.
The Forster America Pivoting Welding Table provides welders with unmatched flexibility and ergonomic comfort, essential for intricate welding tasks. The electromotive rotary drive enables effortless, precise 360° positioning of the welding surface, allowing complete access to workpieces from any angle. Hydraulic lifting capabilities effortlessly adjust table height from 500 mm (19.7 inches) to 1500 mm (59 inches), ensuring welders maintain an optimal working posture and reducing fatigue.
Each welding table is equipped with 12 reversible rails as standard, available in durable Grey Cast Iron (GCI) or Al/Cu alloy, allowing convenient adaptability to various welding applications. A robust design comfortably supports component weights of up to 1,500 kg (3,307 lbs). The built-in stop function securely locks the table surface in place and is easily adjustable to suit changing project demands.
Designed for optimal versatility and ergonomic efficiency, the Forster America Pivoting Welding Table is a dependable solution for achieving superior welding precision and productivity.
Key Benefits
- 360° Electromotive Rotation: Enables fast and accurate positioning of workpieces from any angle.
- Hydraulic Height Adjustment: Offers ergonomic comfort with adjustable working heights (500 – 1500 mm / 19.7 – 59 inches).
- Reversible Rails: Ensures maximum versatility and easy access to weld seams.
- Heavy-Duty Performance: Reliably supports component weights up to 1,500 kg (3,307 lbs).
- Integrated Stop Function: Safely secures table position, allowing quick and precise adjustments.
- Material Versatility: Rails available in durable Grey Cast Iron (GCI) or Al/Cu alloy.
Applications
- Precision welding and fabrication
- Industrial and heavy equipment manufacturing
- Automotive industry welding processes
- Complex and large-scale welding assemblies
Technical Data
| Dimensions | Material | Max. Working Load | Rotation | Height Adjustment | Power Supply | Rails Included | |
|---|---|---|---|---|---|---|---|
Model 64523015 | 3,000 x 1,500 mm (118.1 x 59.1 in) | Al/Cu Alloy | 1,500 kg (3,307 lbs) | 360° electromotive rotary drive | 500 – 1,500 mm (19.7 – 59 inches), hydraulic | 400 – 480 V / 50 – 60 Hz | 12 reversible rails |
Model 64513015 | 3,000 x 1,500 mm (118.1 x 59.1 in) | Grey Cast Iron (GCI) | 1,500 kg (3,307 lbs) | 360° electromotive rotary drive | 500 – 1,500 mm (19.7 – 59 inches), hydraulic | 400 – 480 V / 50 – 60 Hz | 12 reversible rails |
