Lift Turn Welding Table

The Forster America Lift Turn Welding Table features an electro-hydraulic lift and 360° rotation, offering ergonomic height adjustment, a customizable t-slot system, heavy-duty load capacity, and flexible workspace configuration for precision welding.

The Forster America Lift Turn Welding Table is designed for maximum flexibility, precision, and ergonomic efficiency. Featuring an electro-hydraulic scissor lift, this table allows for effortless height adjustments to create the optimal working position, reducing strain and enhancing welding accuracy.

Key Features & Benefits

Electro-Hydraulic Lift for Adjustable Work Height: The integrated electro-hydraulic scissor lift system enables seamless height adjustments, allowing welders to position workpieces at an ergonomic level for greater comfort and control.

Heavy-Duty Load Capacity for Industrial Applications

  • Supports up to 3.5 tons, ensuring durability for heavy-duty welding projects.
  • Stable, spatter-resistant work surface crafted from special gray cast iron or non-ferrous Al/Cu alloy, preventing contamination and reducing maintenance.
  • Surface flatness of +/- 0.05 mm, ensuring precise welding setups for high-quality results.

Customizable Rail System for Maximum Versatility

  • The modular rail system allows for table size adjustments by removing individual rails, providing a customized workspace for each welding task.
  • T-slot design enables secure clamping, precise positioning, and enhanced workflow efficiency.

Stationary or Mobile Configuration for Adaptability

  • Available with height-adjustable feet for a stable, stationary setup.
  • Optional undercarriage with wheels allows for easy repositioning, adapting to various welding environments.

By combining height adjustability, heavy load capacity, and a customizable rail system, the Forster America Lift Turn Welding Table optimizes efficiency, reduces welder fatigue, and enhances precision, making it the perfect solution for complex welding projects. For a more ergonomic, flexible, and precision-driven workspace, the Forster America Lift Turn Welding Table is the ideal choice.

Technical Data

Product IDDimensionsTable MaterialMax Working LoadAdjustable HeightRotates

66111512

1.500×1.200 mm

Gray Cast

1300 kg

460 – 1.300 mm

360°

66112412

2.400×1.200 mm

Gray Cast

2.800 kg

460 – 1.300 mm460 – 1.300 mm

360°

66113015

3.000×1.500 mm

Gray Cast

2.800 kg

460 – 1.300 mm

360°

66121512

1.500×1.200 mm

Al/Cu

1300 kg

460 – 1.300 mm

360°

66122412

2.400×1.200 mm

Al/Cu

2.800 kg

460 – 1.300 mm

360°

66123015

3.000×1.500 mm

Al/Cu

2.800 kg

460 – 1.300 mm

360°

66131512

1.500×1.200 mm

X-Pro

1300 kg

460 – 1.300 mm

360°

Downloads

Accessories

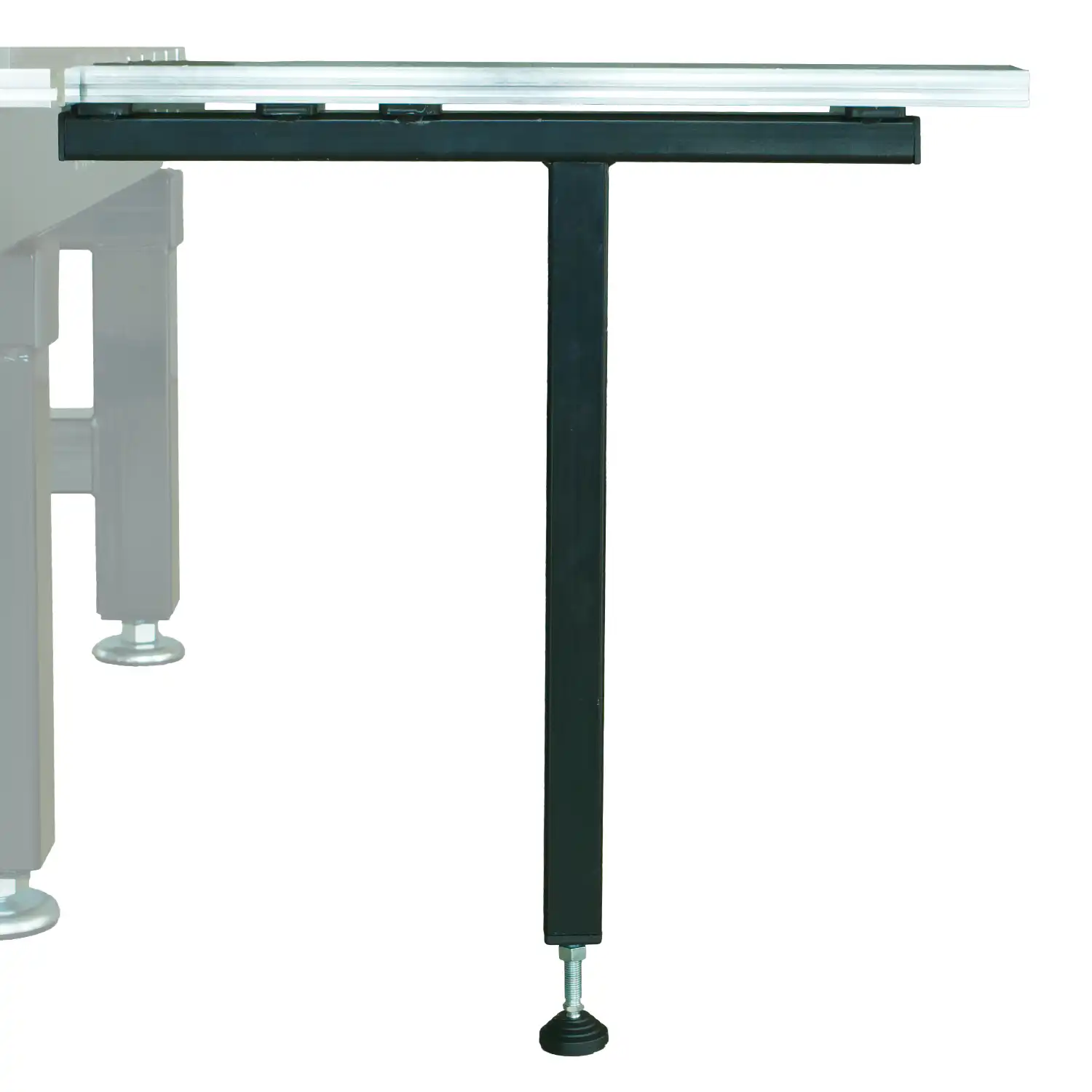

Table Leg Extensions
Table Leg Extensions
Upgrade your welding table with Forster's Leg Extension, designed to support two T-rails for added…
View details

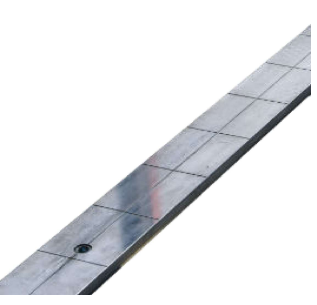

Individual Rails
Individual Rails
Increase the workspace of your welding table with our high-quality inner and outer rails. Available…
View details

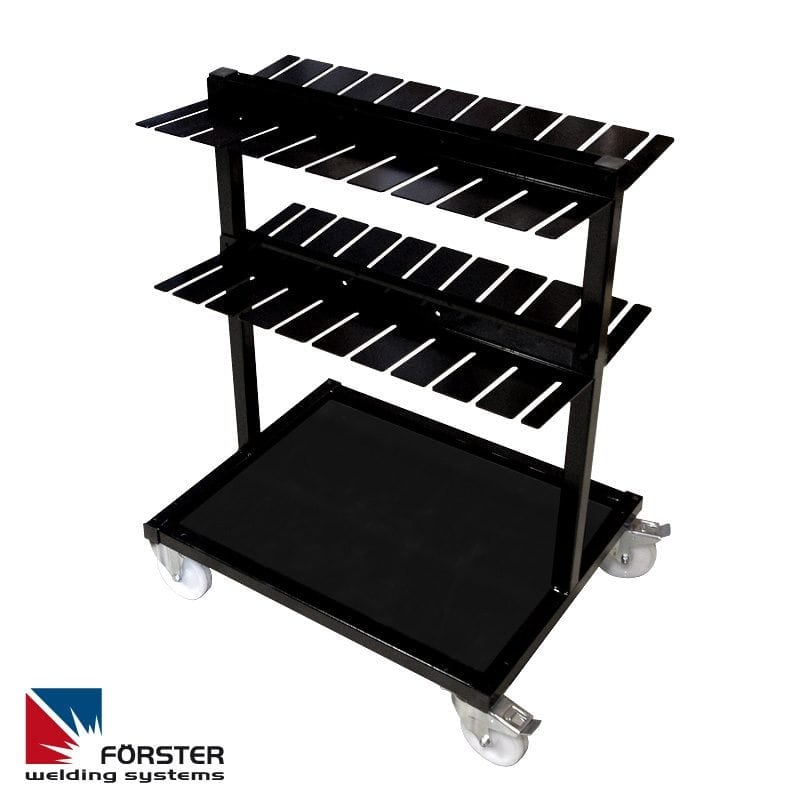

Tool Cart
