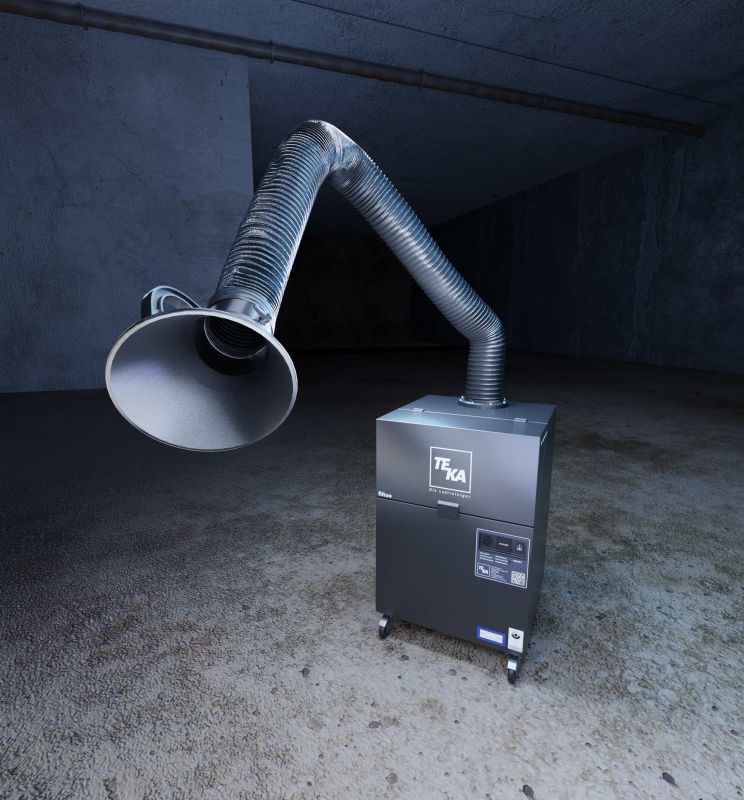

Filtoo Mobile Extraction Unit (Disposable Filter)
The Filtoo is a compact, robust, and IFA W3-certified mobile extraction unit designed for diverse dust and fume applications, from welding and metalworking to dental labs and restoration.

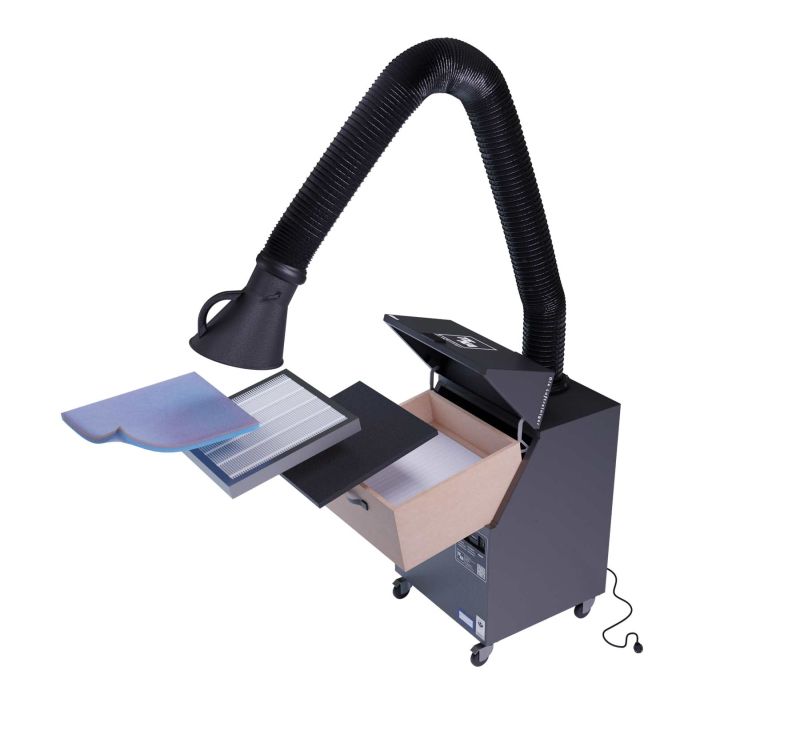

The Filtoo is a compact and robust mobile extraction unit suitable for various dust types, including welding fumes, and is also appropriate for dental laboratories and restoration work. Its sturdy steel construction is powder-coated inside and out. The filter elements are easily accessible via a maintenance cover for quick removal and replacement. The unit features convenient controls and is certified according to DIN EN ISO 15012-1. It is tested and approved by the IFA for filter class W3 as a mobile suction unit (IFA Nr. 201020469/1140).
This unit is designed for separating smoke generated during cutting and joining processes on non-alloyed steel and high-alloyed chromium and nickel steels. Polluted air is drawn into the unit through the extraction hose and passes through a multi-level filter system, removing particles and gases. The cleaned air is then returned to the workspace through sound-dampening module grilles. The Filtoo is a plug-and-play system; only the arm needs to be connected before operation. The optional STAVO pre-separator minimizes the risk of filter ignition from sparks.
Key Benefits
- Compact and robust design.
- High separation efficiency (≥99%).
- Multi-level filtration system.
- Easy filter access and maintenance.
- Plug-and-play system.
- Suitable for various dust types, including welding fumes.
- Certified by IFA for W3 filter class.
Applications
- Metalworking
- Welding
- Any application requiring mobile fume and dust extraction.
Technical Data
| Specifications | Details |
|---|---|
Max Fan Performance | 942 CFM (1600 m³/h) |
Max Pressure | 1,800 Pa |
Suction Inlet | 6in |
Sound Level Approx | 72 dB(A) |
Main Filter Class | H13 |
Separation Efficiency | ≥ 99% |
Filter Equipment | pre-filter mat, pre-filter cassette, activated carbon filter, main filter |
Drive Power | 1.5 hp 115V |
Dimensions (W x D x H) | 22.8 in x 22.8 in x 35.4 in (580 x 580 x 900 mm) |
Weight Approx, | 176 lbs (80 kg) |
