Clamping Elements

Forster’s clamping elements provide welders with precise, stepless positioning and seamless movement, enabling flexible and efficient 3D clamping adjustments.

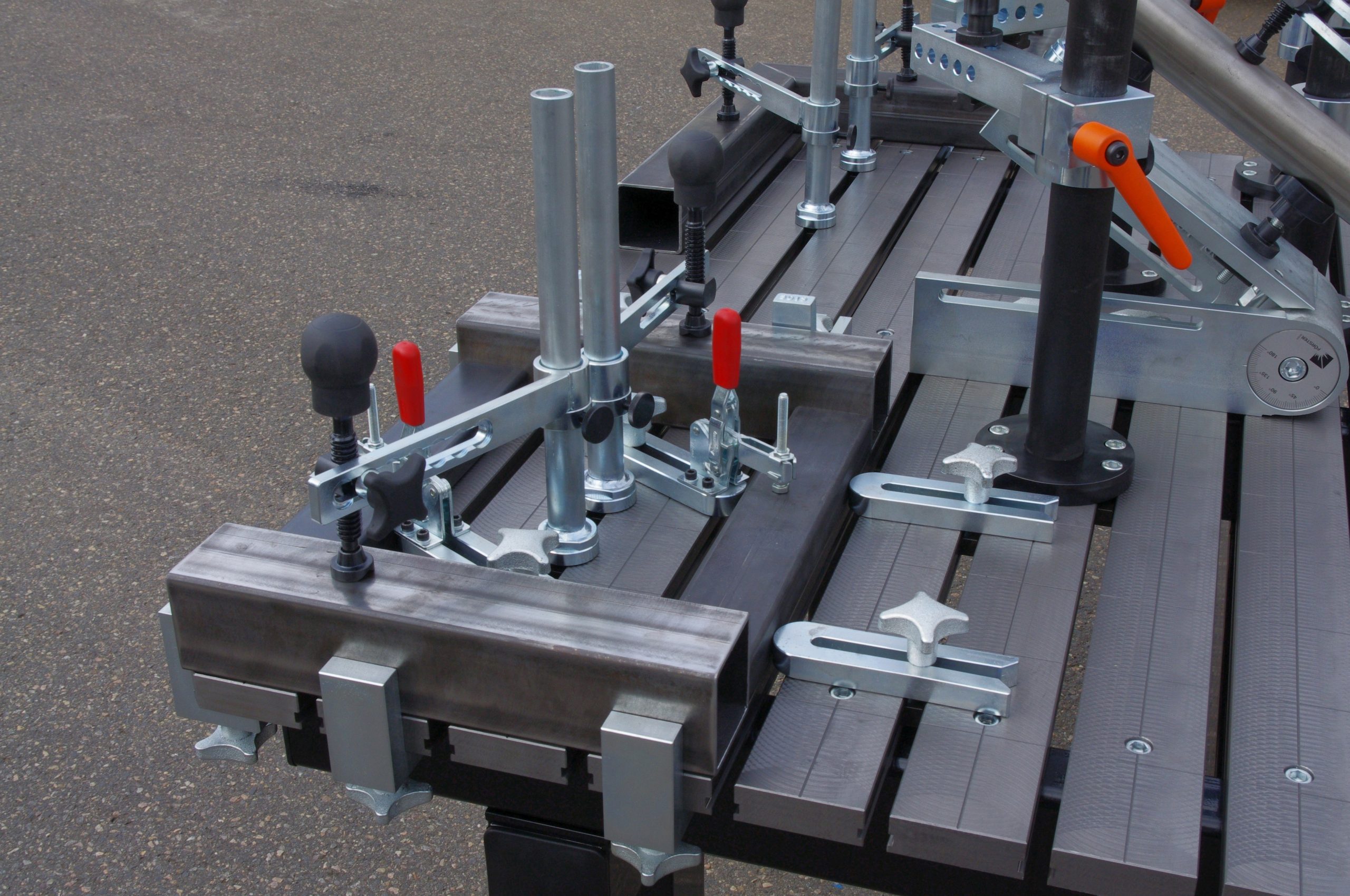

All of our angles, clamping elements and clamping arms give the welder the opportunity to easily and steplessly reach all points on the table thanks to their special slot design. Stepless shifting and precise positioning is only possible with the cooperation of the groove in the table as Y-axis and the special slot cut-out in each clamping element, clamping arm and angle as X-axis. Each slot is exactly 100 mm long and serves as a bridge to cover the difference up to the next table slot.

Even while working, it is still possible to incorporate further clamping elements later with our rhombic groove stone, which can be inserted from the top into the T-slot to incorporate forgotten clamping elements later, without having to dismantle everything again. Is not intended to absorb large forces, but can give the welder the opportunity without major interruption later still use clamping elements.

Technical Data

Product IDItem Description

612010

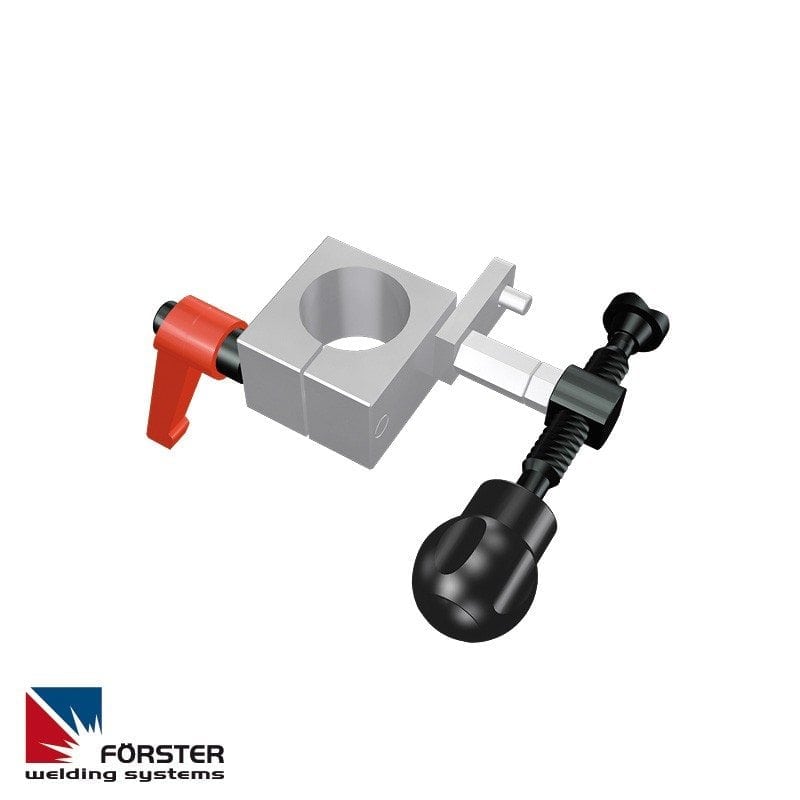

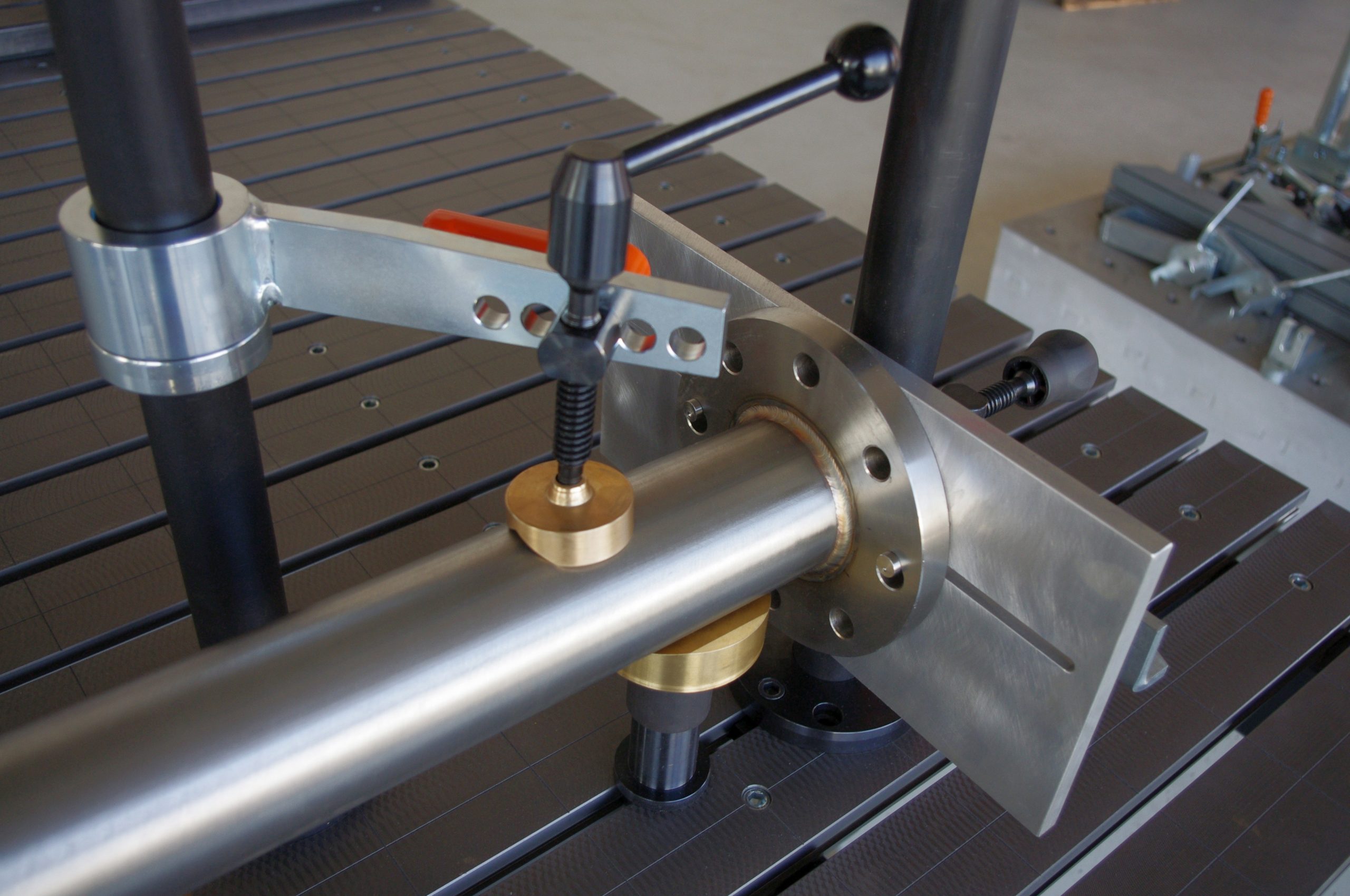

Clamping Arm, Ø 30 mm

622010 Br

Clamping Arm, Ø 30 mm with bronze press piece

612040

Flat Clamp

622040 Br

Flat clamp with bronze press piece

612041

Clamping Jaws

612042

Quick-release Clamp with flat stop

622042 Al

Quick-release Clamp with flat stop Aluminum

612043

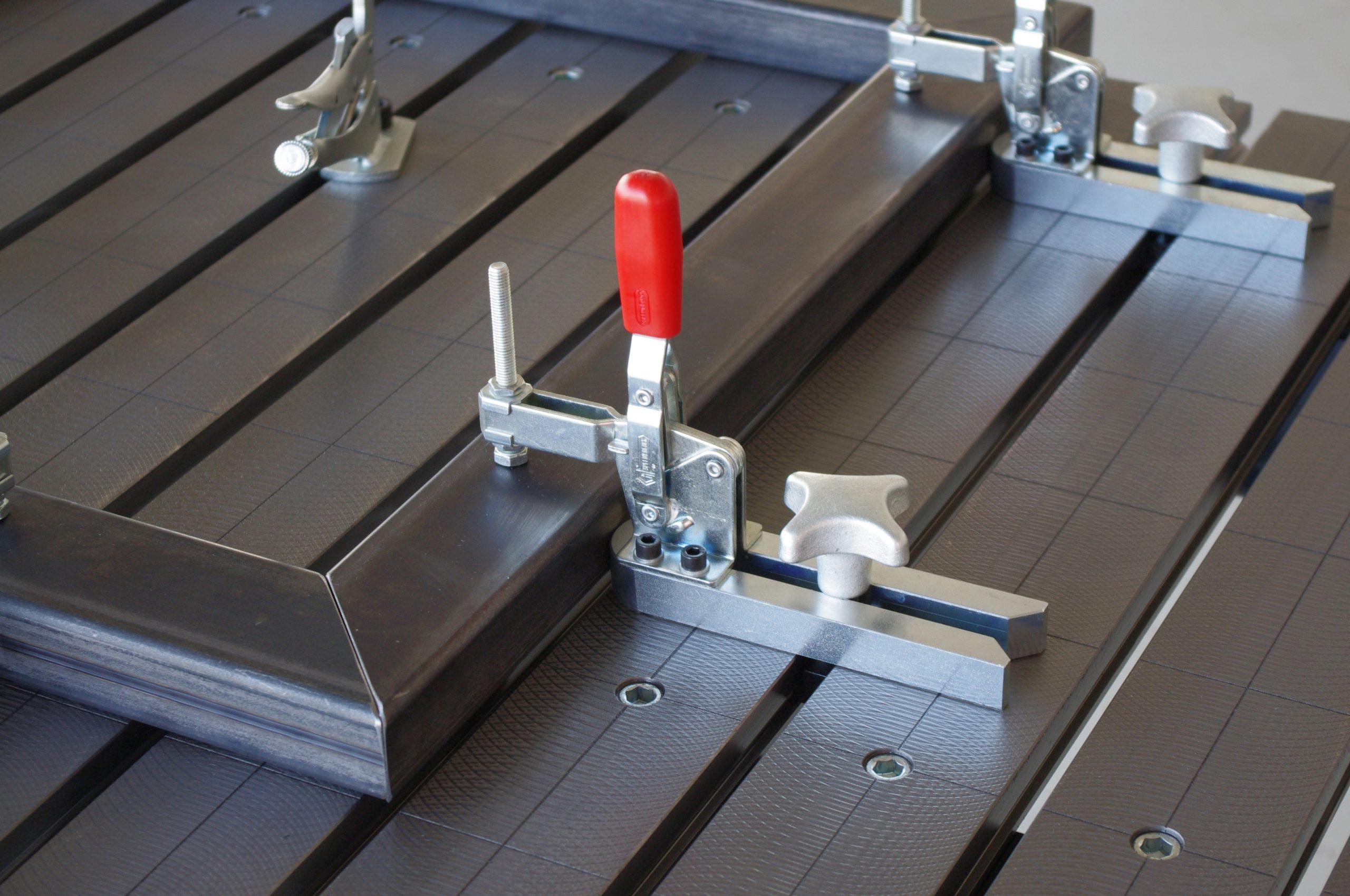

Horizontal Clamp

622043 Br

Horizontal Clamp with bronze press piece

612044

Horizontal Clamp, height adjustable, with clamping tower Ø 50mm x 600mm

622044 Br

Horizontal Clamp with bronze press piece, height adjustable, with clamping tower Ø 50mm x 600mm

612045

Horizontal Clamp, height adjustable, without clamping tower

622045 Br

Horizontal Clamp with bronze press piece, height adjustable, without clamping tower

612050

Clamping Arm, Ø 50 mm

622050 Br

Clamping Arm with bronze press piece, Ø 50 mm

612051

Support Arm, Ø 50 mm

622051 Br

Support Arm with bronze press piece, Ø 50 mm

613030

Flange Clamp with clamping tower, 50 mm x 600 mm
