Al/Cu Alloy Modular Welding Tables
The Al/Cu Modular Welding Table offers a non-ferritic, customizable work surface with a unique T-slot system, ensuring precision, durability, and contamination-free stainless steel processing.
For professionals working on stainless steel welding projects, maintaining a contamination-free environment is crucial. Our Al/Cu Modular Welding Table (Aluminum Copper Alloy) is designed to meet the highest standards, providing a non-ferritic, highly durable, and customizable work surface for precision welding.
Key Features & Benefits
Al/Cu Alloy Table for Stainless Steel Projects: The table is equipped with Al/Cu alloy rails, ensuring a completely non-ferritic surface that prevents contamination and corrosion. The high thermal conductivity of the alloy minimizes weld spatter adhesion, keeping your workspace cleaner and reducing maintenance.
Innovative T-Slot System for Maximum Flexibility: Our advanced T-slot system allows for unlimited positioning of clamping elements and stops. This feature enables secure workpiece positioning, enhancing accuracy and efficiency for every welding project.
Customizable Table Design: The modular design includes removable rails, enabling welders to configure the table to meet the specific needs of each job. Whether you require a grid pattern or an open workspace, the flexibility of this system allows for seamless adjustments.
Durability with Minimal Surface Damage: Featuring a high tensile strength (+F 37, comparable to structural steel) and a low surface hardness, our Al/Cu welding table minimizes damage to polished stainless steel surfaces. Unlike traditional worktables that require complete immersion to remove flaws, this table significantly reduces maintenance efforts and costs.
Increased Productivity, Reduced Downtime: A well-designed welding setup translates to improved workflow and efficiency. By eliminating the need for excessive cleaning, rework, and material adjustments, our modular welding system enhances productivity, allowing welders to focus on precision and quality.
For superior results in stainless steel welding, invest in the Al/Cu Modular Welding Table. Its innovative design, durability, and flexibility make it an essential tool for high-performance welding applications.
Product Details

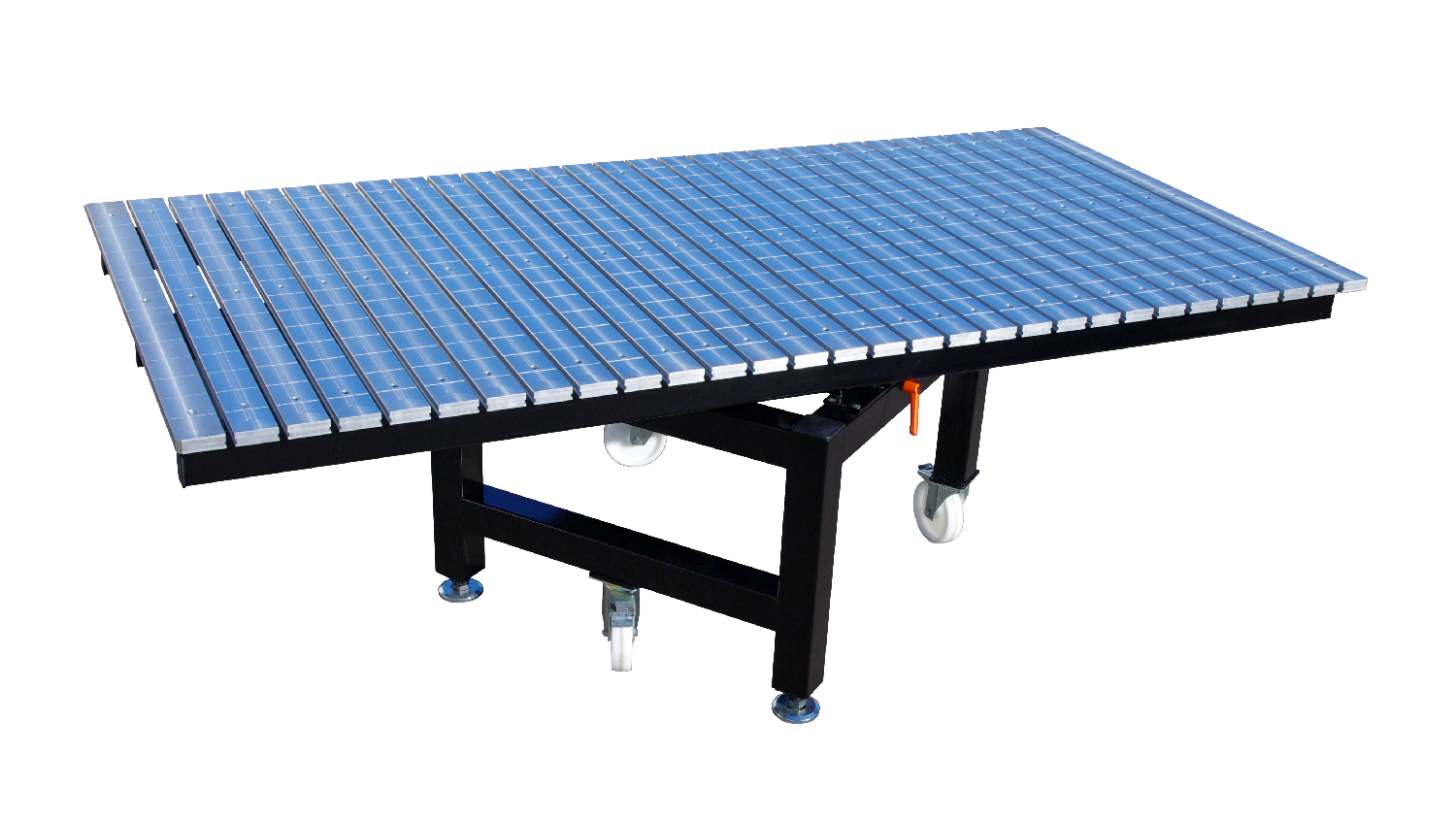

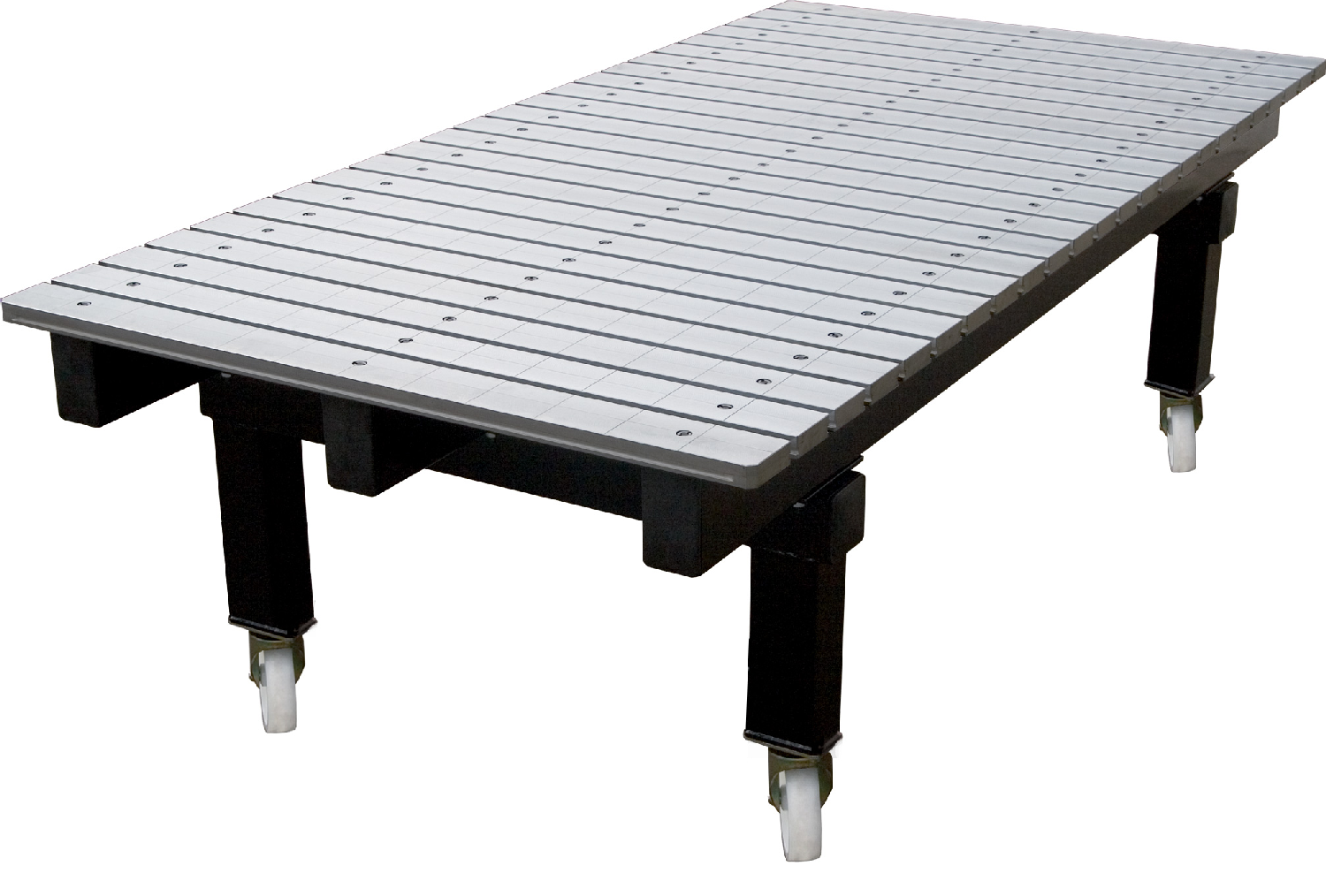

Movable Table Options
| Product ID | Dimensions | Point Load | Distributed Load | Features |
|---|---|---|---|---|
65823015 / 621208 | 118.11” x 59.05” (3000 mm x 1500 mm) | 3,300 lbs. (1,500 kg) | 6,600 lbs. (3,000 kg) | 3 wheels and adjustable feet, 33.66” (855 mm) |
65823012 / 621209 | 118.11” x 47.24” (3000 mm x 1200 mm) | 3,300 lbs. (1,500 kg) | 6,600 lbs. (3,000 kg) | 3 wheels and adjustable feet, 33.66” (855 mm) |
65822412 / 621210 | 94.48” x 47.24” (2400 mm x 1200 mm) | 3,300 lbs. (1,500 kg) | 6,600 lbs. (3,000 kg) | 3 wheels and adjustable feet, 33.66” (855 mm) |
65822010 / 621215 | 78.74” x 39.37” (2000 mm x 1000 mm) | 3,300 lbs. (1,500 kg) | 6,600 lbs. (3,000 kg) | 3 wheels and adjustable feet, 33.66” (855 mm) |
65821812 / 621220 | 70.86” x 47.24” (1800 mm x 1200 mm) | 3,300 lbs. (1,500 kg) | 6,600 lbs. (3,000 kg) | 3 wheels and adjustable feet, 33.66” (855 mm) |
65821012 / 621230 | 39.37” x 47.24” (1000 mm x 1200 mm) | 3,300 lbs. (1,500 kg) | 6,600 lbs. (3,000 kg) | 3 wheels and adjustable feet, 33.66” (855 mm) |

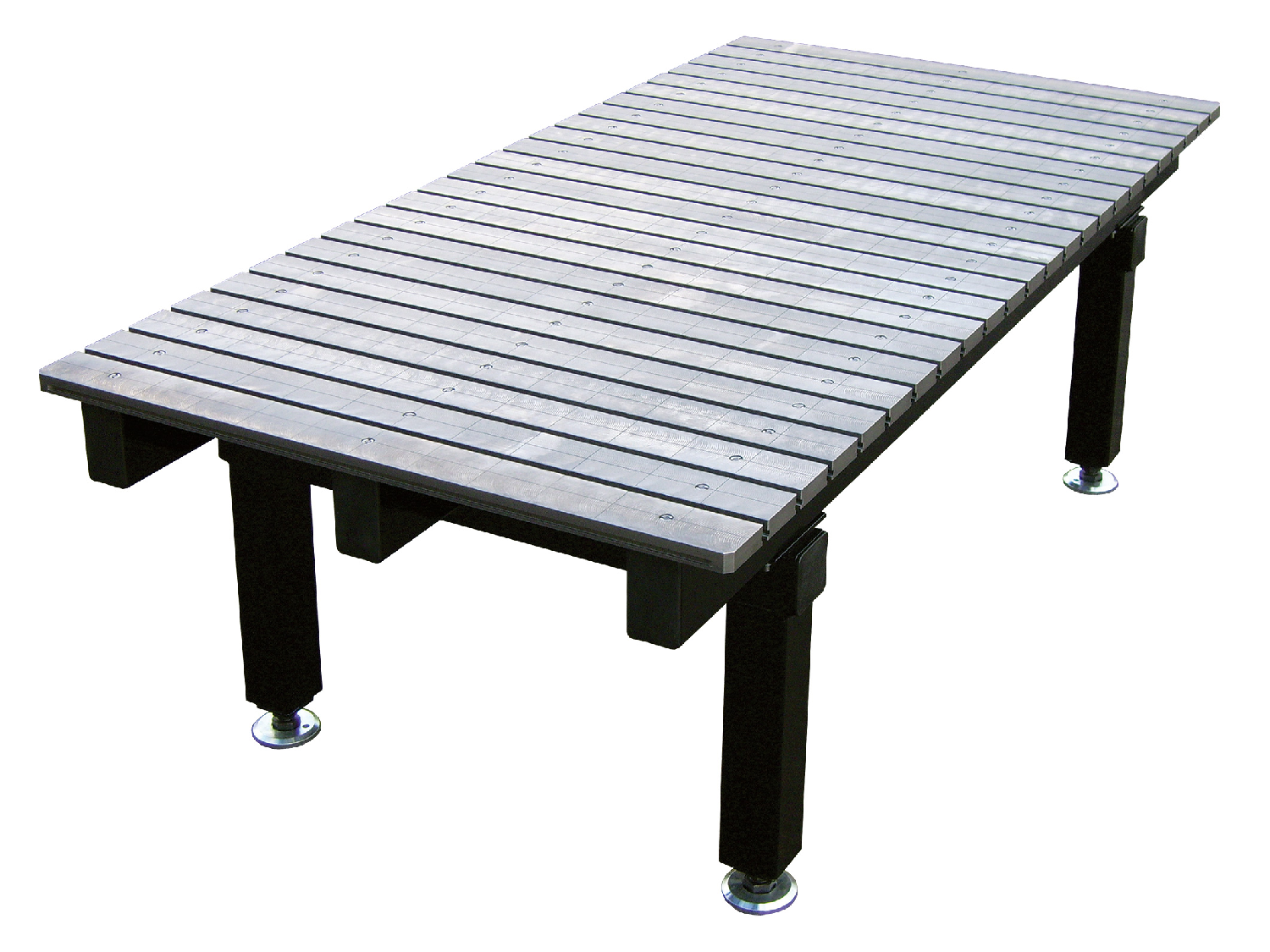

Stationary Table Options
| Product ID | Dimensions | Point Load | Distributed Load | Features |
|---|---|---|---|---|
65123015 / 621308 | 118.11″ x 59.05″ / 3000 x 1500 | 3,300 lbs (1,500 kg) | 6,600 lbs (3,000 kg) | 4 adjustable feet, variable from 32.87” – 37.20” (835 – 945 mm) |
65123012 / 621309 | 118.11″ x 47.24″ / 3000 x 1200 | 3,300 lbs (1,500 kg) | 6,600 lbs (3,000 kg) | 4 adjustable feet, variable from 32.87” – 37.20” (835 – 945 mm) |
65122412 / 621310 | 94.48″ x 47.24″ / 2400 x 1200 | 3,300 lbs (1,500 kg) | 6,600 lbs (3,000 kg) | 4 adjustable feet, variable from 32.87” – 37.20” (835 – 945 mm) |
65122010 / 621315 | 78.74″ x 39.37″ / 2000 x 1000 | 3,300 lbs (1,500 kg) | 6,600 lbs (3,000 kg) | 4 adjustable feet, variable from 32.87” – 37.20” (835 – 945 mm) |
65121812 / 621320 | 70.86″ x 47.24″ / 1800 x 1200 | 3,300 lbs (1,500 kg) | 6,600 lbs (3,000 kg) | 4 adjustable feet, variable from 32.87” – 37.20” (835 – 945 mm) |
65121012 / 621330 | 39.37″ x 47.24″ / 1000 x 1200 | 3,300 lbs (1,500 kg) | 6,600 lbs (3,000 kg) | 4 adjustable feet, variable from 32.87” – 37.20” (835 – 945 mm) |
65121008 | 39.37″ x 31.49″ / 1000 x 800 | 3,300 lbs (1,500 kg) | 6,600 lbs (3,000 kg) | 4 adjustable feet, variable from 32.87” – 37.20” (835 – 945 mm) |
